Car Builders Peel & Stick Heat Shield Light Face Large - PSHSLLX1

Car Builders Peel & Stick Heat Shield Light Face Large

Sheet Size: 1060mm x 605mm x 3mm

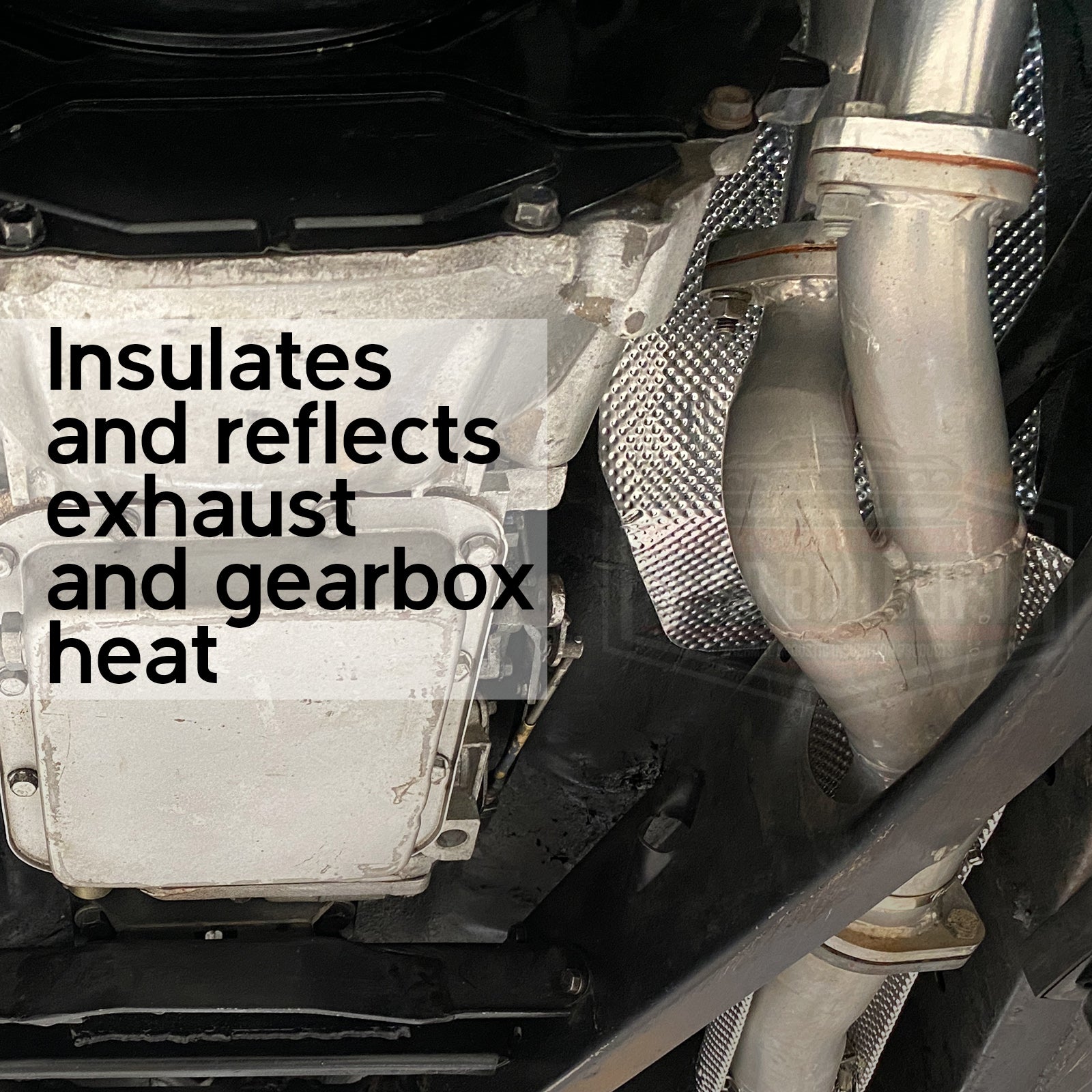

Our Peel & Stick Heat Shield has a unique pressure sensitive adhesive making it easy and versatile to install, particularly in tight spaces. It is widely used as a thermal and acoustical barrier in many industries and works effectively to block heat around fuel tanks/systems, tunnel shields, floor pans, exhaust systems, body shields, transmissions, fluid lines and to protect non ferrous materials.

Technical Specifications

Material Type: Polyester & Fiberglass core material

Temperature: Withstands 246ºC (475ºF) oven test for 30 hours with no failure

Core Thickness: 3mm (0.125 inch)

Foil Thickness: 0.05mm (0.002”) for the Light face

Weight: 915-1400 g/m (3-4.5 oz/ft2)

Moisture Absorption: 0.3%

Thermal Conductivity 24ºC: 0.036 W/m/ºK

(K-value) 93ºC: 0.043 W/m/ºK

Adhesion To E-Coated Steel: 22.1 N/cm after 24hr Dwell

Tensile Strength: 526 N/cm2

Tear Resistance:  333 N/cm
